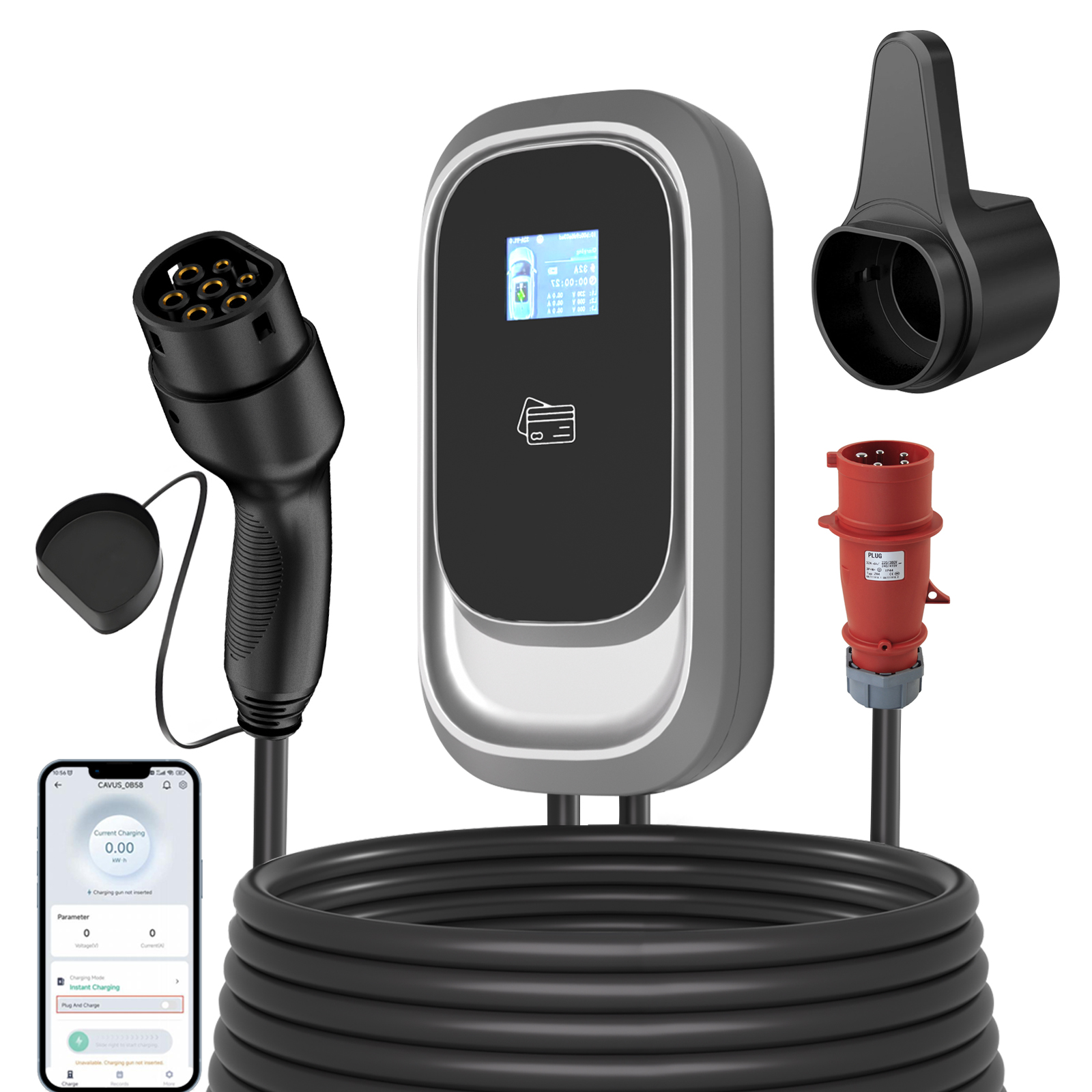

Charging Box
● LCD screen.
● Easy installation.
● High compatibility.
● Waterproof grade：IP55.
● Small size, Easy to transport.

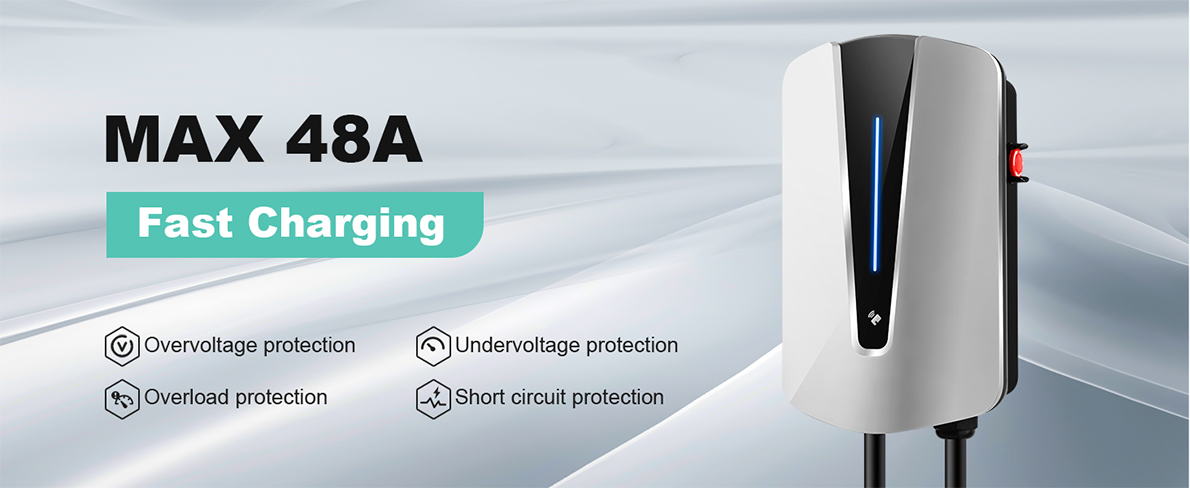

● Over-voltage protection/lightning protection.
● Certified by authorities (CE, FCC, RoHS).
● Real-time monitor on charging temperature.
● Error correction & reboot system.
EV Connector
● Excellent protection performance.
● Keep EV connector working even if use in a rainy day.
● Good conductivity.
TPU/TPE Cable
● Durable and anticorrosion.
● Easy to bend, long service life.
● High resistance to cold, high temperature.
Core Advantage
● TypeA+DC 6mA.
● Temperature monitoring system.A
● Strong expansivity (WiFi, RFID, APP, OCPP).
Product introduction

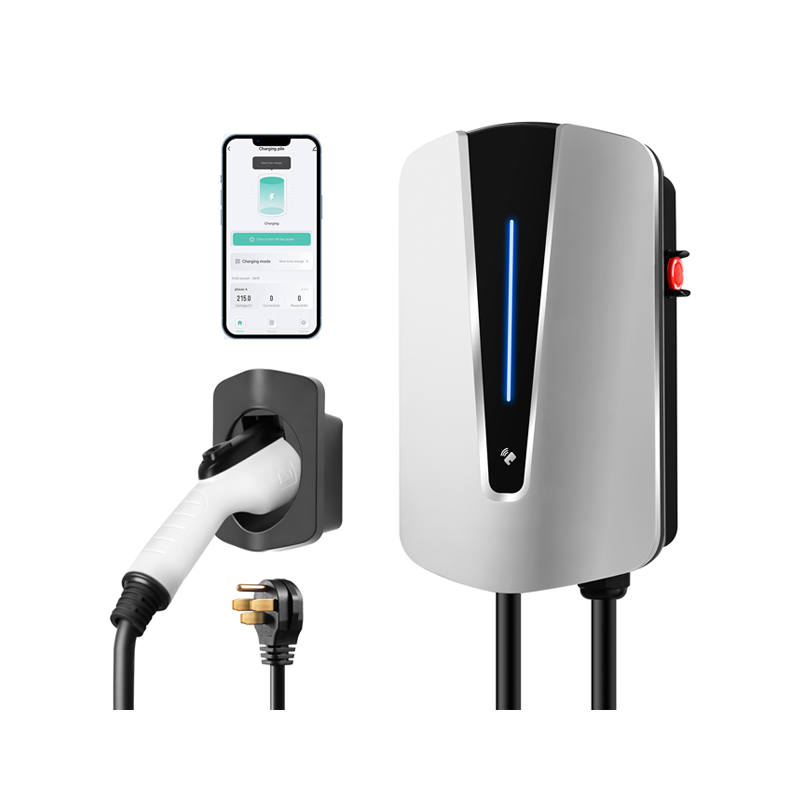

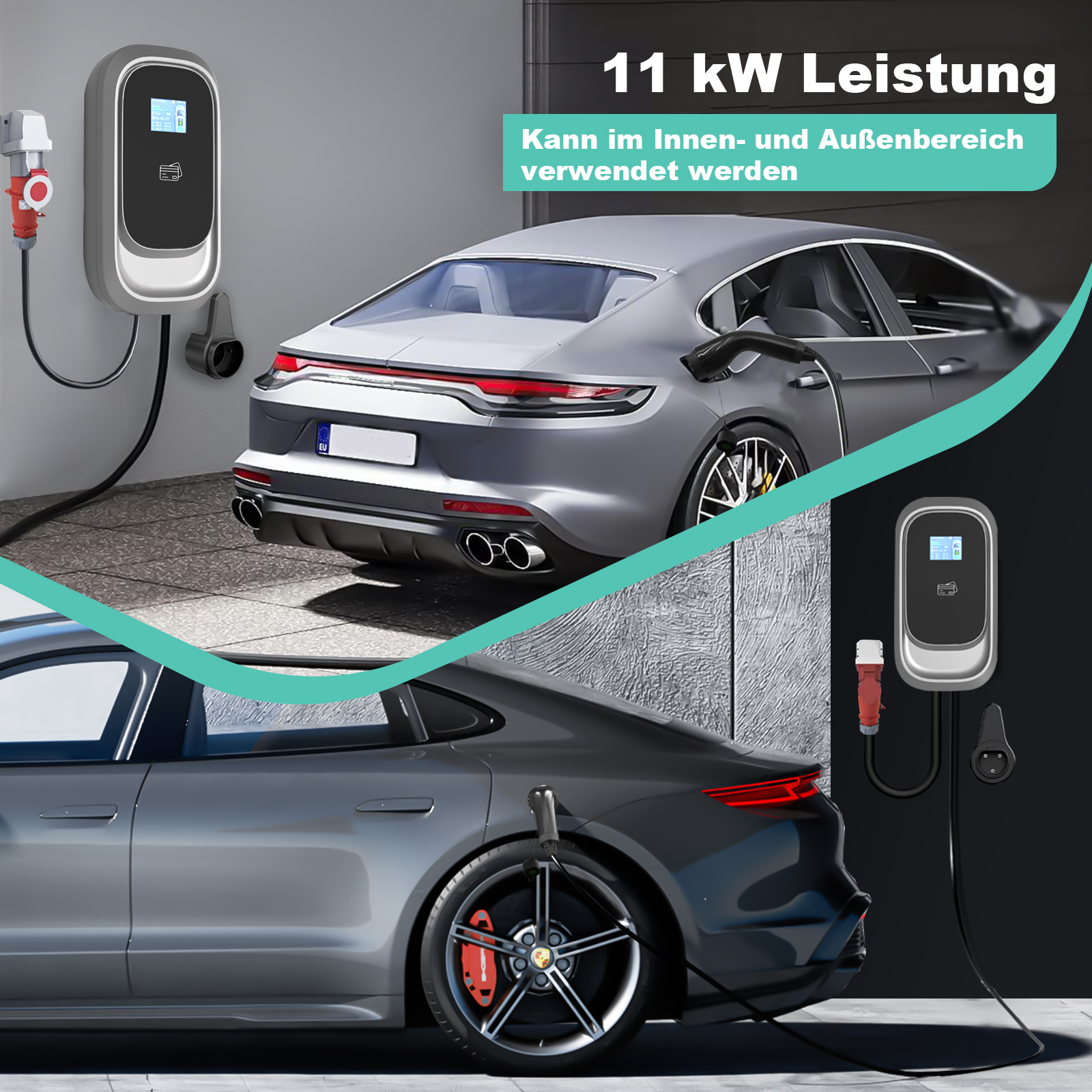

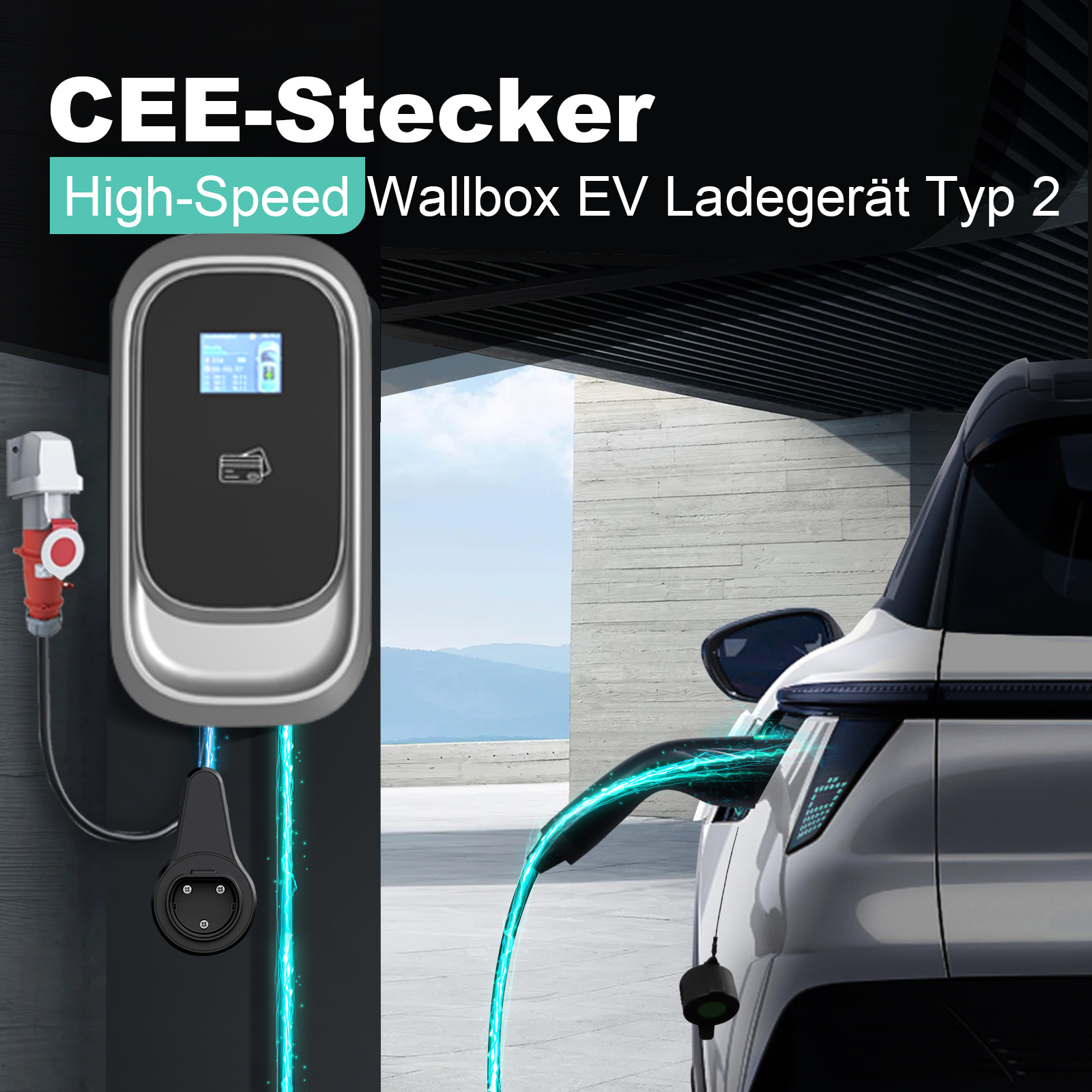

This is a basic wall-mounted charger and suitable for home use. It is easy to install and sable in performance with a complete protection mechanism. The LCD display can show the detailed charging status. The charger can be used with stand.
Cautions
● Do not connect the circuit by yourself without professional guidance.
● Do not use the charger when the inside of the plug is wet.
● Do not install the charger by yourself before reading the instructions.
● Do not use the charger for other purposes except for electric car charging.
Special Attention
● Do not try to disassemble the device by yourself under any circumstances, this may cause damage to the internal precision parts.
Electrical Specification
| Input voltage/Output voltage | 120V / 230V / 380V (Three Phase) |
| Input frequency | 50Hz |
| Max. output power | 7kW/22kW(three phase) |
| Max. output current | 32A |

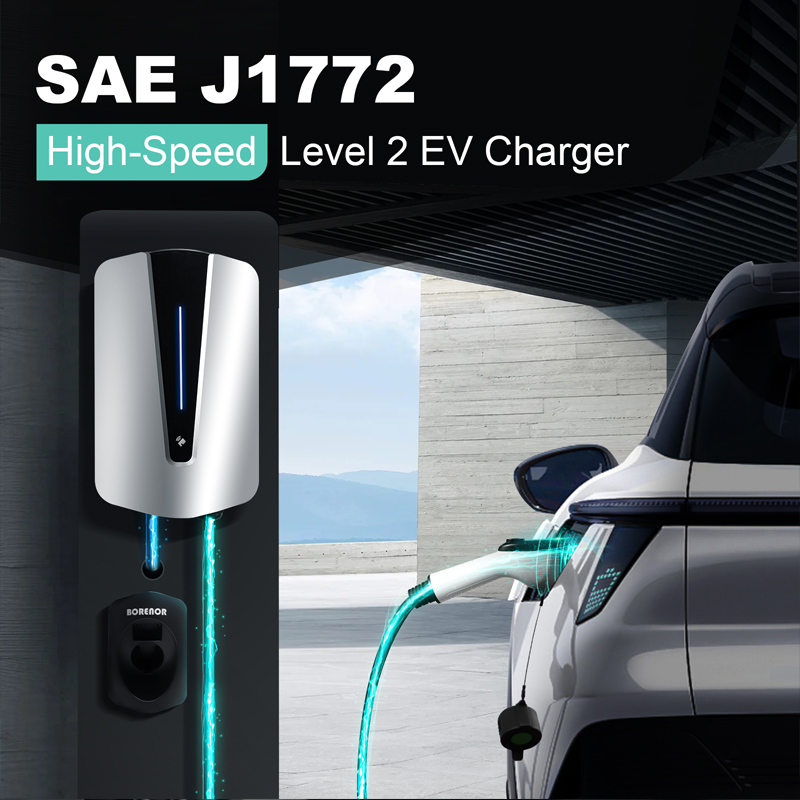

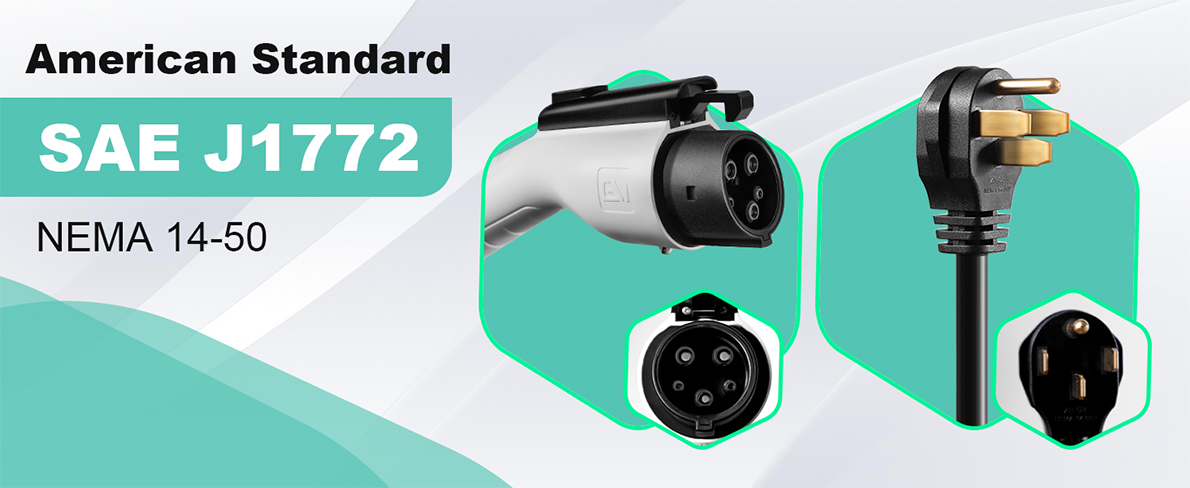

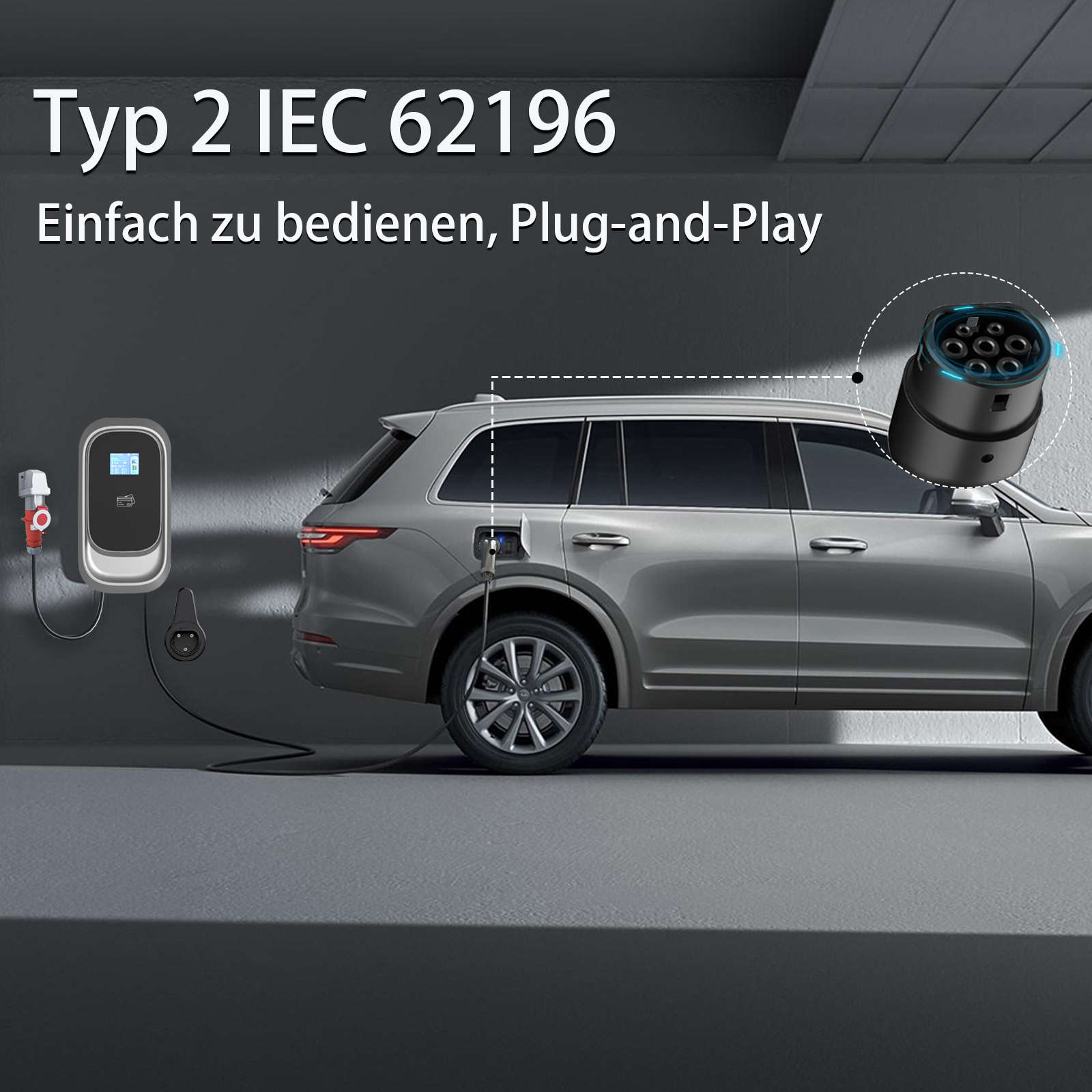

| Charging interface type | Type 2(IEC 62196-2), Type 1(SAE J1772) |
Working Environment
| Protection Degree | IP55 |
| Environment Temperature | -30℃ ~ +50℃ |
| Relative Humidity | 5%-95% non-condensing |
| Maximum altitude | <2000m |
| Cooling method | Natural cooling |
| Standby Power Consumption | <3W |
Function and Accessory
| Ethernet/WIFI/4G/Bluetooth | No |
| LCD | 3.5-inch color display |
| RCD | Type A / Type A+ 6mA |
| LED Indicator light | Yes |
| Intelligent power adjustmen | No |
| RFID | Opt |
| APP | Opt |
Type A + 6mA RCD
● The product is equipped with Type A + 6mA RCD leakage protector, which complies with the latest EU safety standards.
Temperature Monitoring
● Monitor the working temperature of the charger at all times.
● Once the safe temperature is exceeded, the charger will stop working immediately, and the charging system can be auto-resumed when the temperature returns to normal.
Complete Certification
● The product has passed relevant certifications in Europe and North America, ensuring that the product can be sold and used with confidence.
Easy to Install
● The installation process is simple and efficient, and the estimated time is 10-15 minutes..

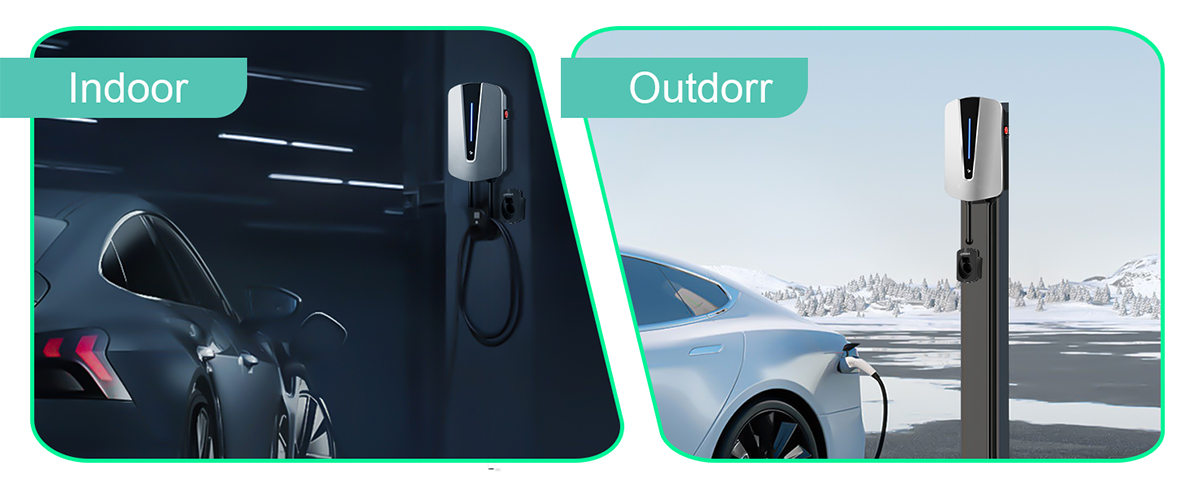

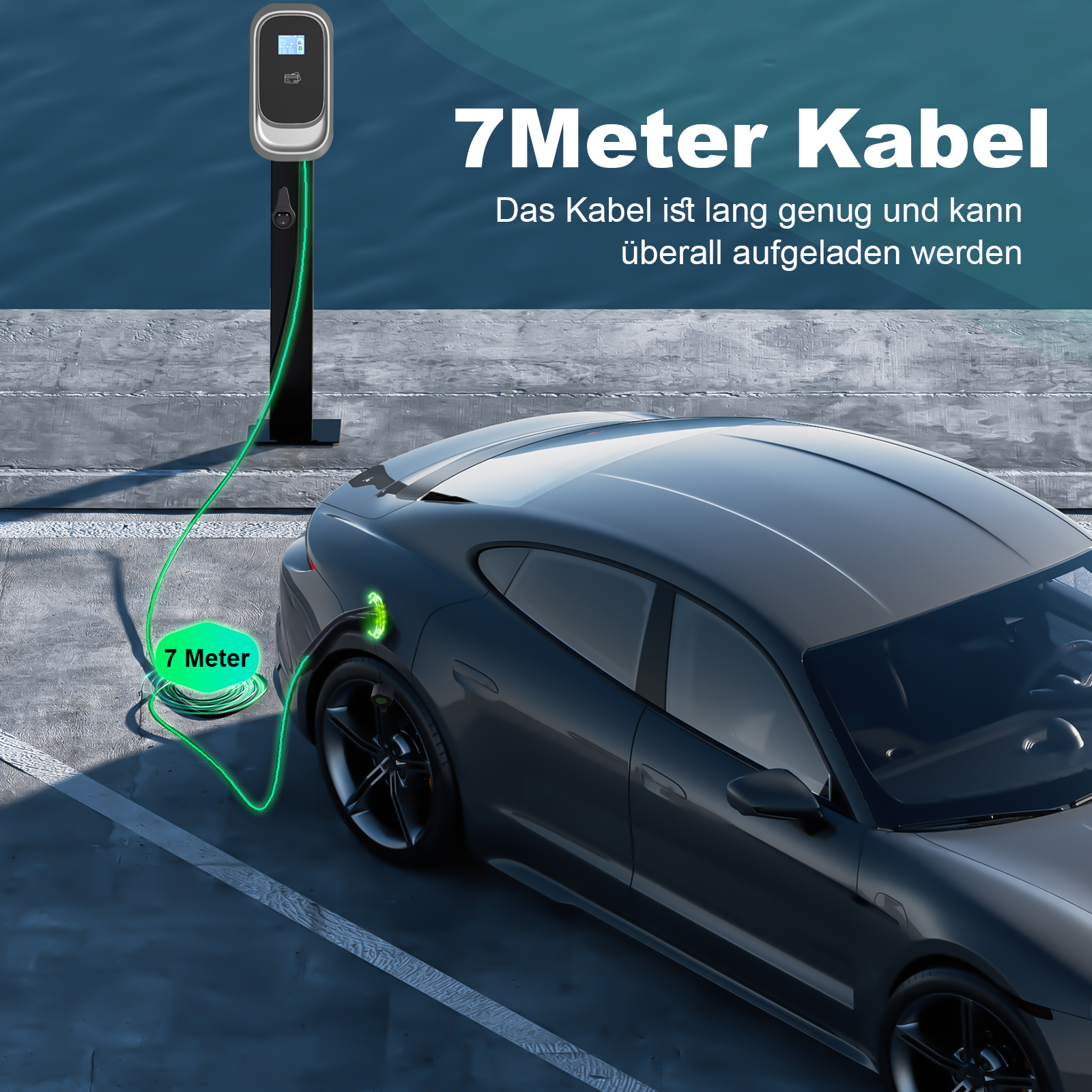

Stand
● The product has a supporting stand, which is easy for installation and outdoor use without the walls. The stand has 2 models, single-side & double side..
Customer Service
● We can provide customers with professional product advice and purchase options.
● All emails will be responded within 12 hours during working days.
● All customers will get one-on-one service.
Customized Service
● We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
● OEM includes color, length, logo, packaging, etc.
● ODM includes product appearance design, function setting, new product development, etc.
● MOQ is depend on different customized requests.
After-sale Service
● The warranty of all our products is one year.
● The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
