Our main products include ev charger wallbox, ev connectors, ev charging station and so on.

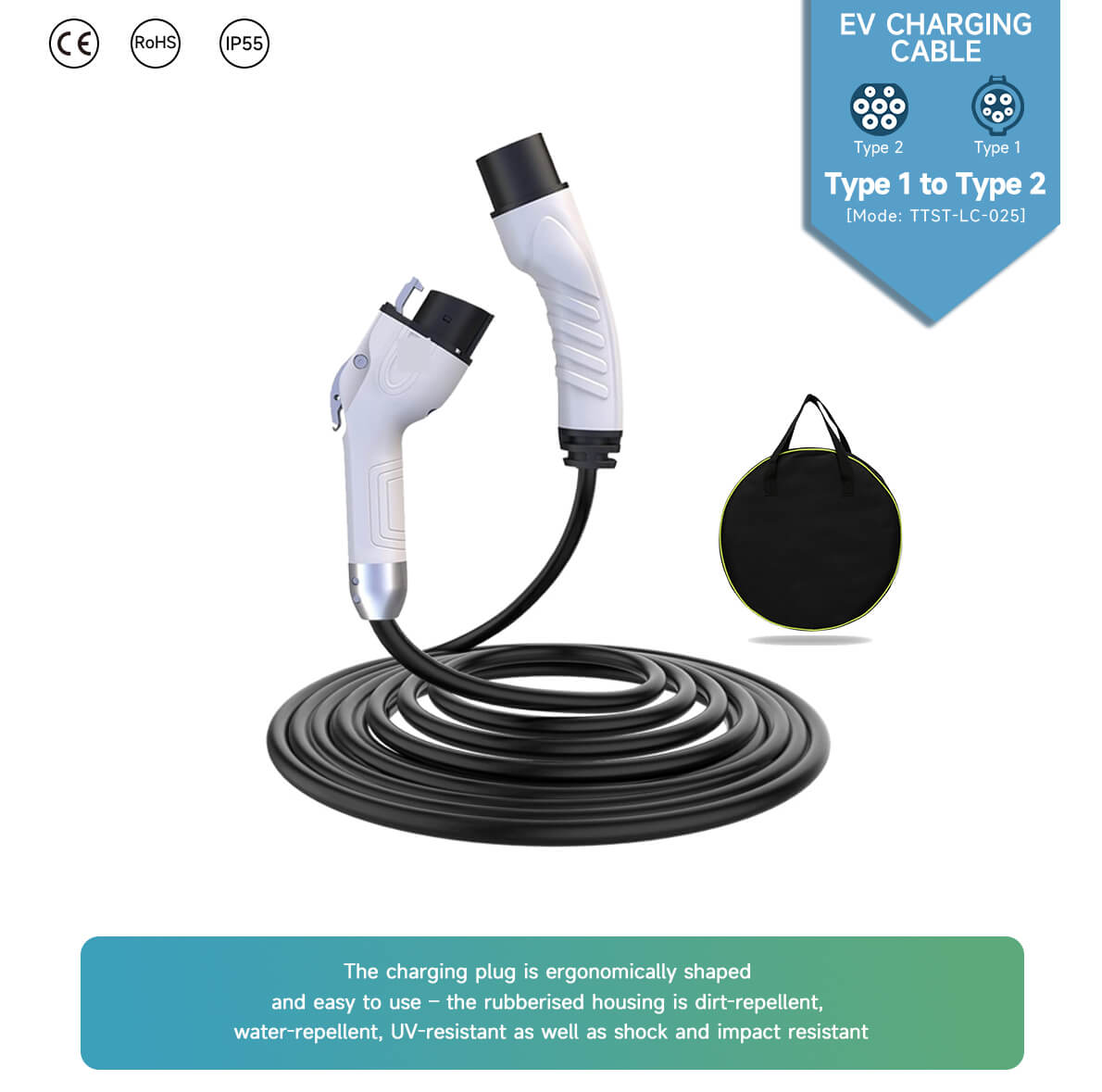

The charging plug is ergonomically shaped and easy to use, the rubberized housing is dirt-repellent, water-repellent, UV-resistant as well as shock and impact resistant.
● Stronger and anti-aging.
● Meet the newest EN standard.
● More environmentally friendly, halogen-free.
● More environmentally friendly, halogen-free.
● More resistant to cold and keep flexible at -40℃.
● More resistant to bending and longer service life.
● Unique integrated design, stronger.
● Better conductivity and higher energy transmission.
● Efficiency.

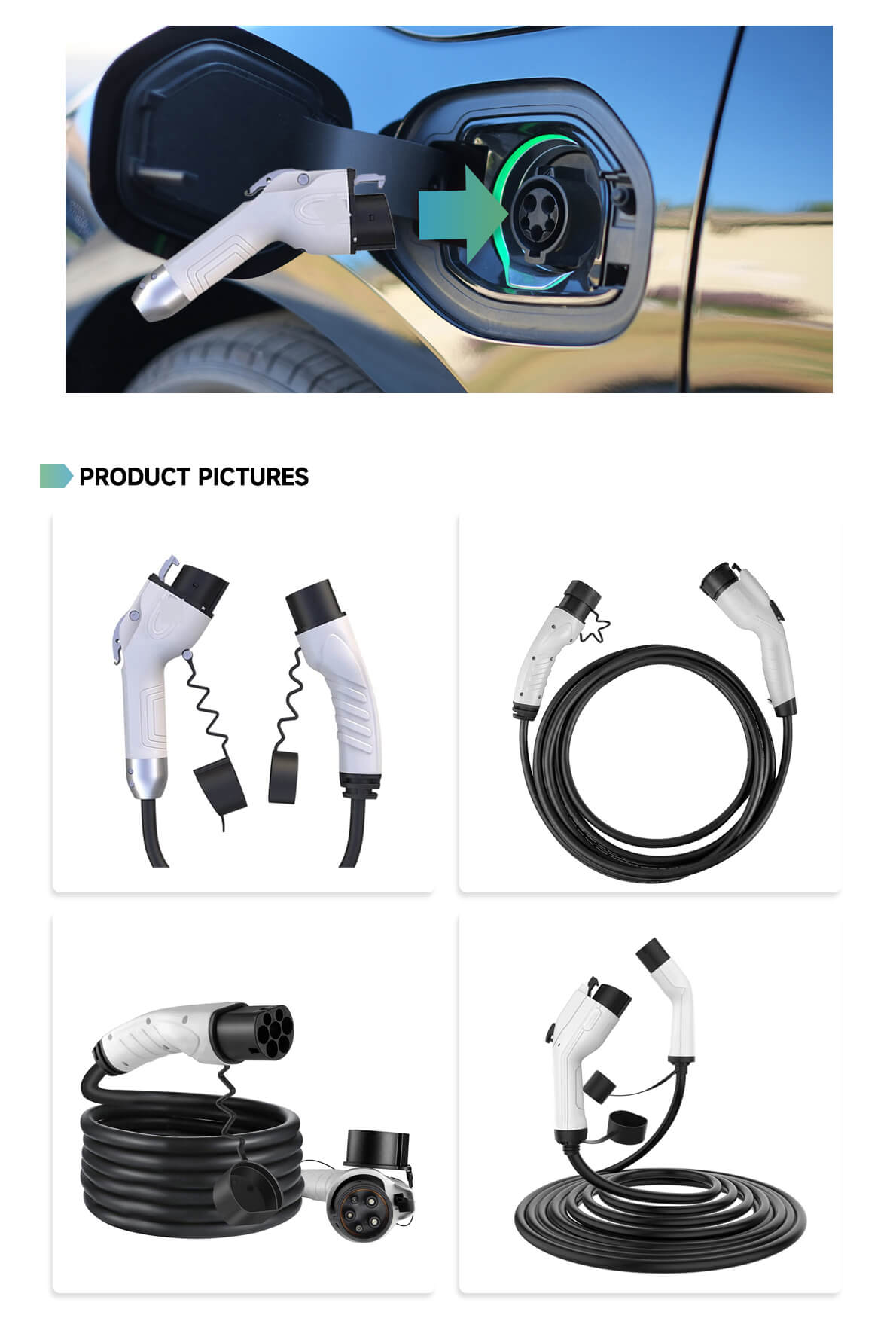

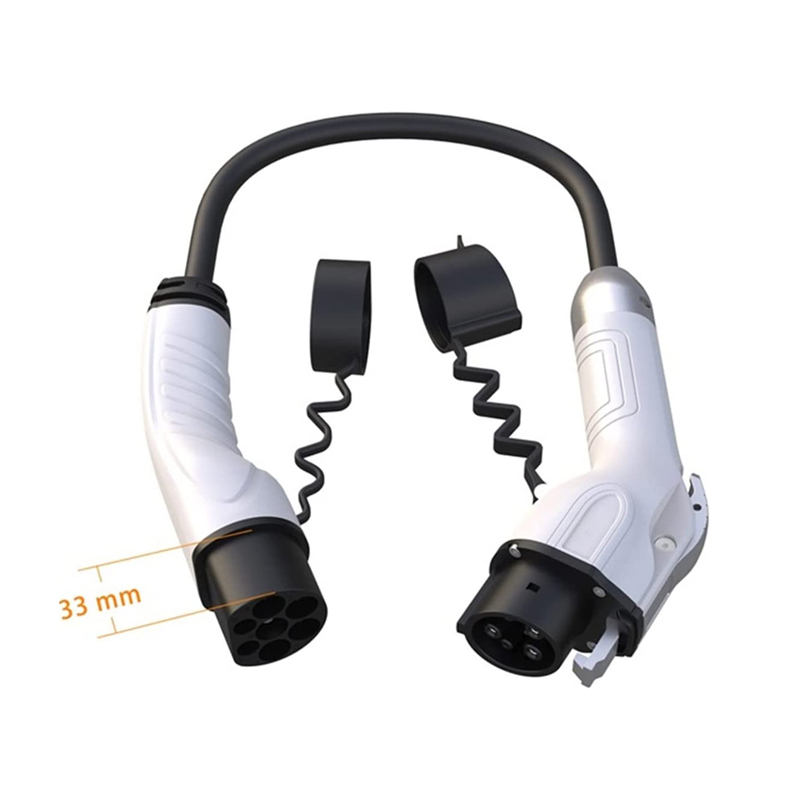

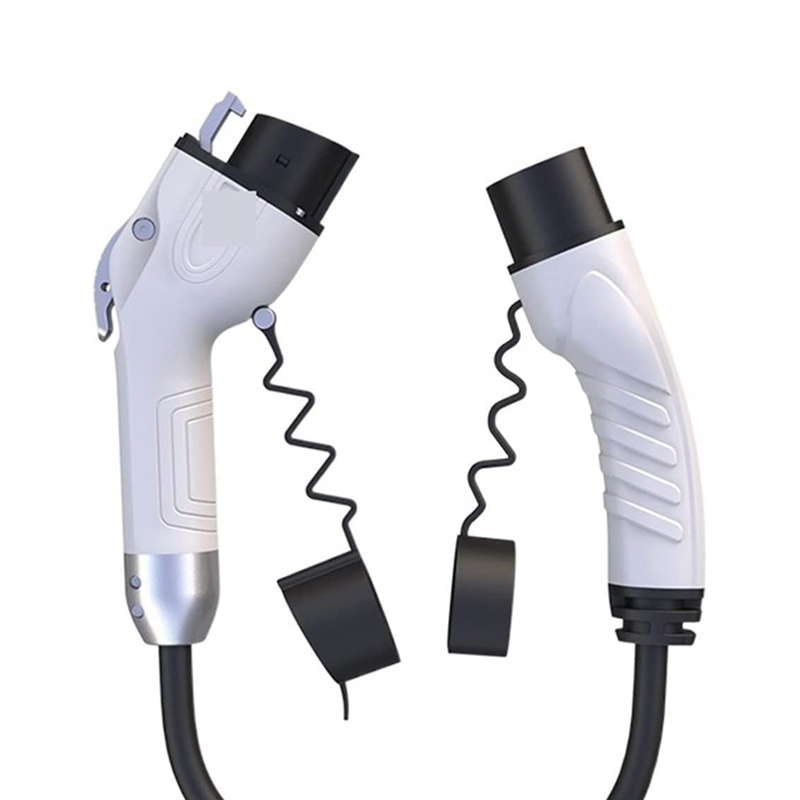

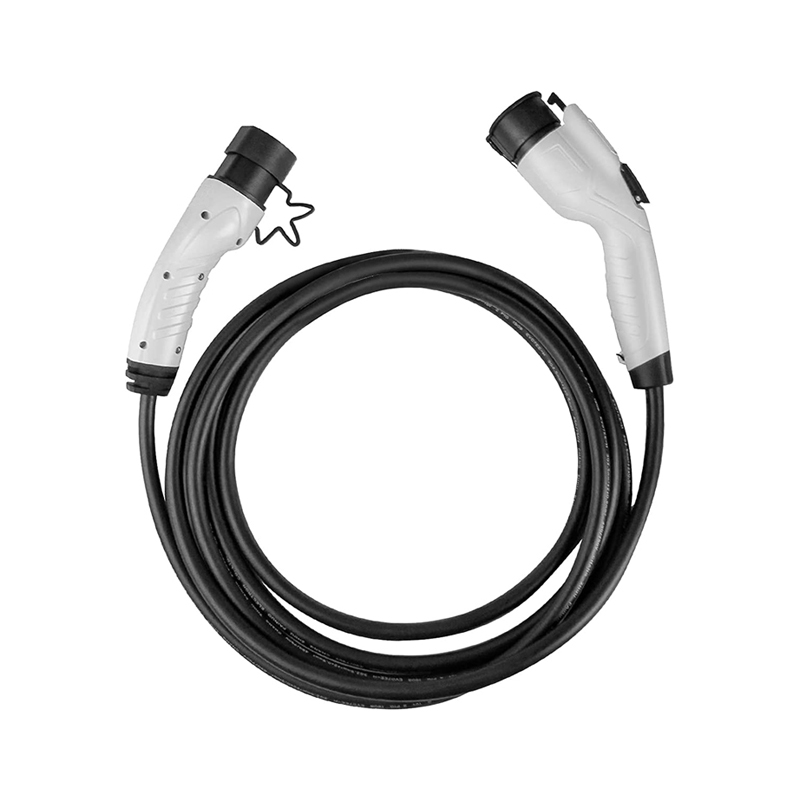

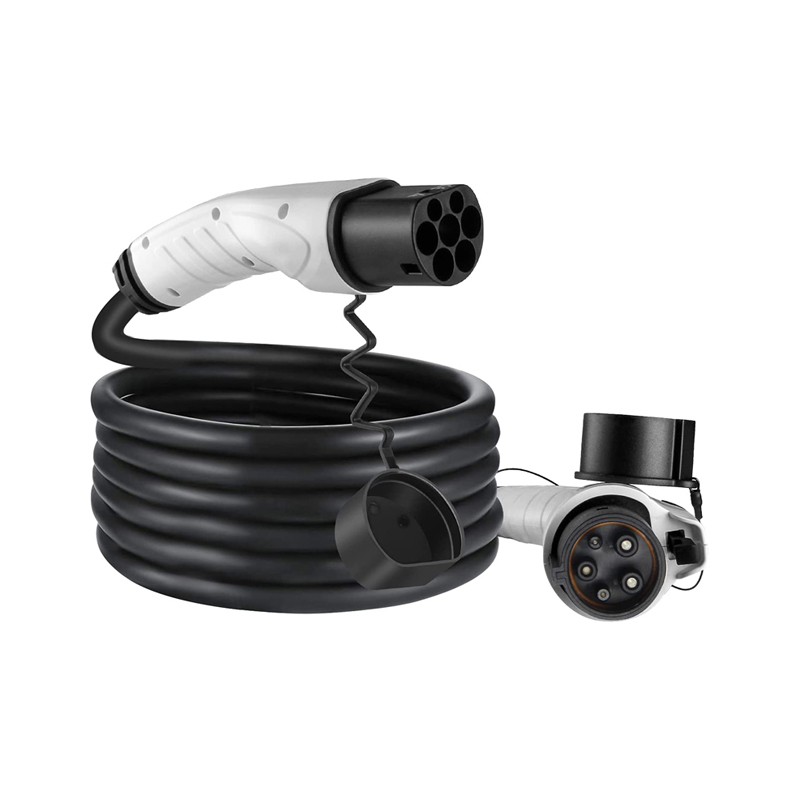

This product is special designed for electric vehicle charging, generally called a mode 3 EV charging cable used to connect EV charger and electric car. There are two types according to different car end plugs: Type 1 cable and Type 2 cable. This product has a unique integrated design and strong structure which can be used outdoor and in rainy environment. It could also withstand the crushing of a vehicle.
Products accept OEM, ODM and related customization. Acceptable custom parts include but are not limited to.
● The color of the plug, logo.
● Cable length, color, logo.
● The pattern on the packing carton, logo.
● The charging cable is only for EV charging using.
● Don’t submerge the charging cable in water.
● Don’t put finger into the charging plug.
● Don’t use the device when the cable is damaged.
● Don’t dis-assemble or refit the product.
● The precautions for use include but are not limited to those listed above.
● If you are not sure whether it will cause safety hazards, please contact after-sales service in time.
Rated current | 32A |
Working voltage | 230V AC±10% |
Insulation resistance | >500M Ω |
Terminal temperature rise | <50K |
Withstand voltage | 2600V |
Contact impedance | 0.3m Ω Max |
Mechanical life | plug in/out > 20000 times |
Waterproof Protection degree | IP55 |
Maximum altitude | <2000m |
Environment temperature | -40℃ ~ +50℃ |
Relative humidity | 0-95% non-condensing |
Standby power consumption | <5W |
TPU/TPE | 3*2.5mm²+1*0.75mm² |
Length | 5m or customized |
Shell Material | Thermoplastic (Insulator in flammability UL94 VO) |
Contact Pin | Copper alloy, silver or nickel plating |
Sealing gasket | Rubber or silicone rubber |
Cable | TPU/ TPE |
● Meet the newest EN standard and request of EV cable.
● More resistant to cold and heat. The elasticity and flexibility of the cable can still be maintained even the it is outdoor used at -40℃. So it will not be stiff and hard to use in winter.
● Tighter and stronger molecular structure. The cable is more anti-aging compared with the normal ones. The sheath is less likely to crack even after long-term sun bursts and oil soaking.
● Material is more resistant to bending. TPU material can well protect the internal wiring harness to work normally under repeated bending conditions, ensuring a longer service life of the equipment.
● We can provide customers with professional product advice and purchase options.
● All emails will be responded within 12 hours during working days.
● All customers will get one-on-one service.
● We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
● OEM includes color, length, logo, packaging, etc.
● ODM includes product appearance design, function setting, new product development, etc.
● MOQ is depend on different customized requests.
● The warranty of all our products is one year.
● The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
