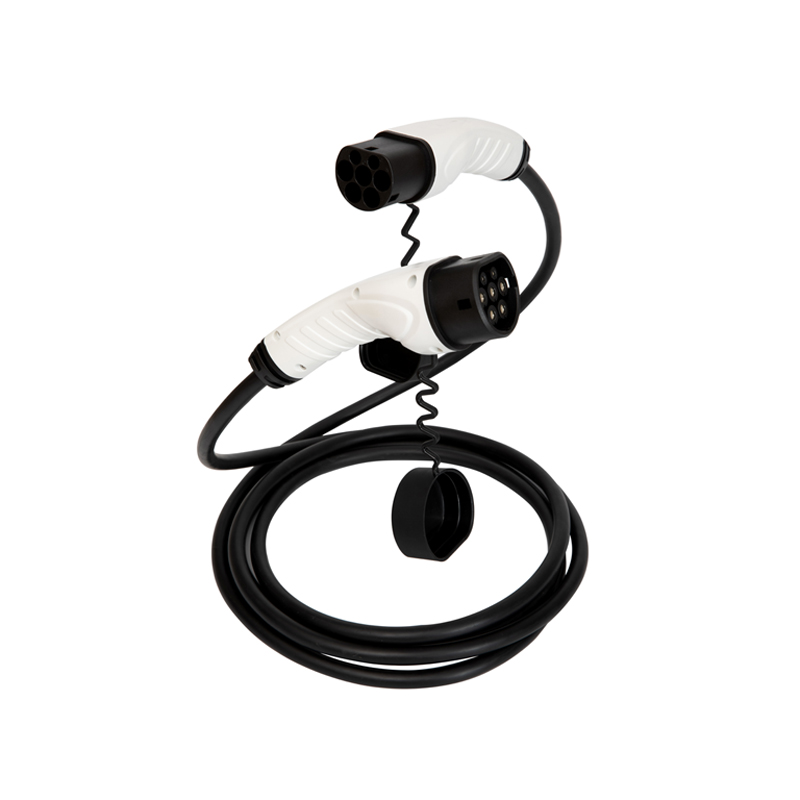

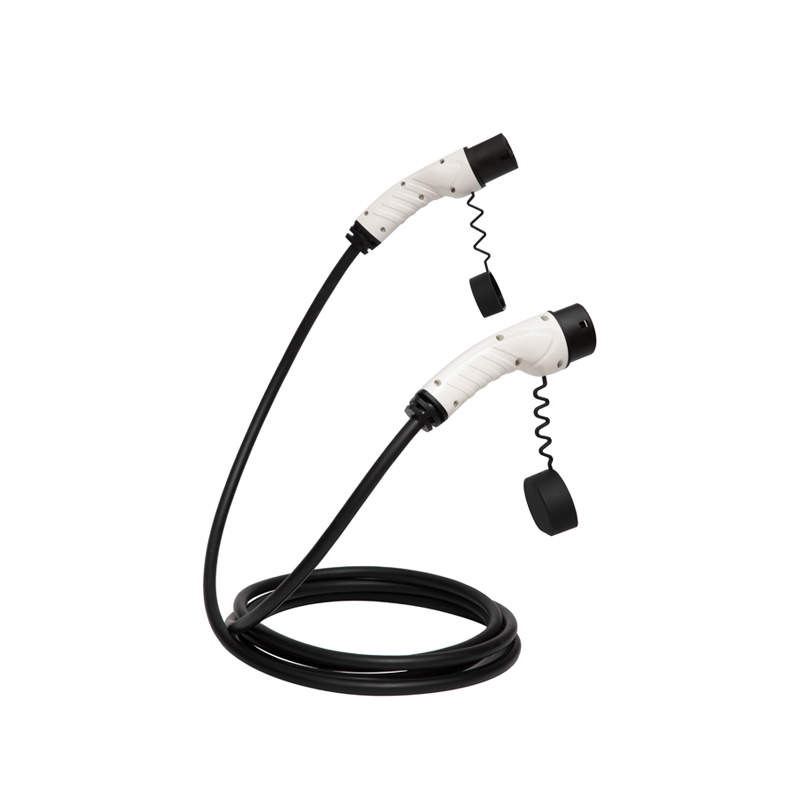

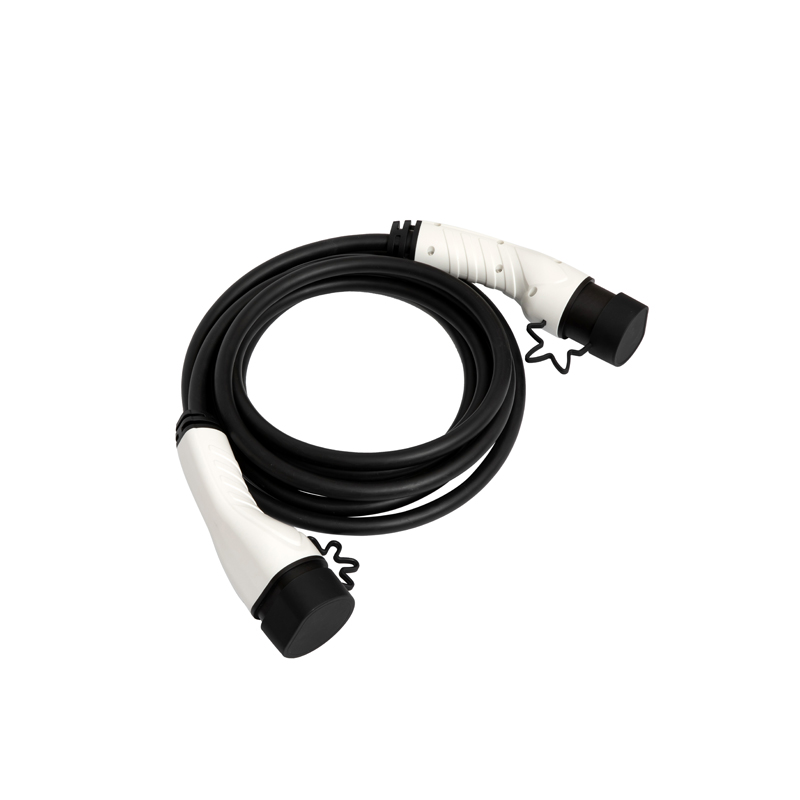

EV charging cable 32A 7kw 5m Customized length

The charging plug is ergonomically shaped and easy to use, the rubberized housing is dirt-repellent, water-repellent, UV-resistant as well as shock and impact resistant.

  • EV charging cable 32A 7kw 5m Customized length
  • EV charging cable 32A 7kw 5m Customized length
Product Details

TPE/TPU Cable

● LCD screen.

● Stronger and anti-aging.

● Meet the newest EN standard.

● More environmentally friendly, halogen-free.

● More resistant to cold and keep flexible at -40℃.

● More resistant to bending and longer service life.

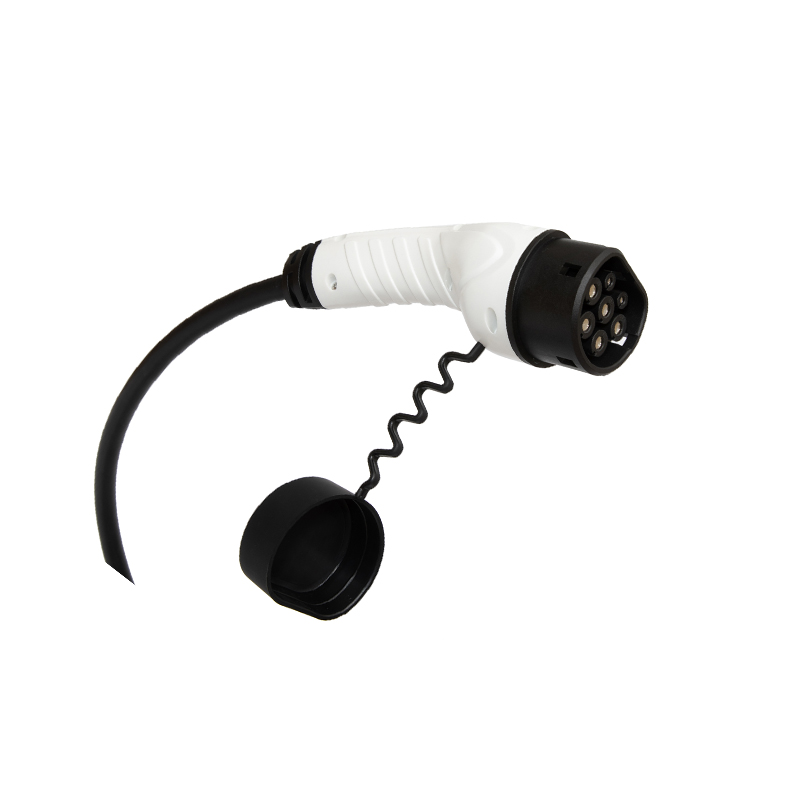

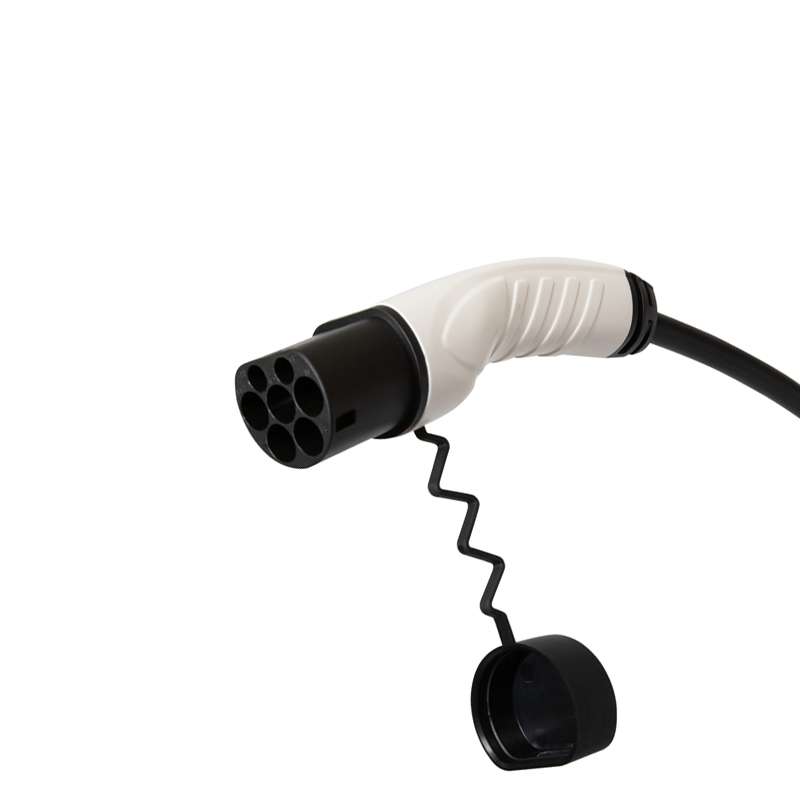

EV Plug

● Unique integrated design, stronger.

● Better conductivity and higher energy transmission.

● Efficiency.

Product introduction

This product is special designed for electric vehicle charging, generally called a mode 3 EV charging cable used to connect EV charger and electric car. There are two types according to different car end plugs: Type 1 cable and Type 2 cable. This product has a unique integrated design and strong structure which can be used outdoor and in rainy environment. It could also withstand the crushing of a vehicle.

About Customized Service

Products accept OEM, ODM and related customization. Acceptable custom parts include but are not limited to.

● The color of the plug, logo.

● Cable length, color, logo.

● The pattern on the packing carton, logo.

Cautions

● The charging cable is only for EV charging using.

● Don’t submerge the charging cable in water.

● Don’t put finger into the charging plug.

● Don’t use the device when the cable is damaged.

● Don’t dis-assemble or refit the product.

Note

● The precautions for use include but are not limited to those listed above.

● If you are not sure whether it will cause safety hazards, please contact after-sales service in time.

Product Specification

Rated current32A
Working voltage230V AC±10%
Insulation resistance>500M Ω
Terminal temperature rise<50K
Withstand voltage2600V
Contact impedance0.3m Ω Max
Mechanical lifeplug in/out > 20000 times
Waterproof Protection degreeIP55

Working Environment

Maximum altitude<2000m
Environment temperature-40℃ ~ +50℃
Relative humidity0-95% non-condensing
Standby power consumption<5W

Charging Cable Spec

TPU/TPE3*2.5mm²+1*0.75mm²
Length5m or customized

Product Material

Shell MaterialThermoplastic (Insulator in flammability UL94 VO)
Contact PinCopper alloy, silver or nickel plating
Sealing gasketCopper alloy, silver or nickel plating
CableTPU/ TPE

EN Standard

● Meet the newest EN standard and request of EV cable.

Strong Patience

● More resistant to cold and heat. The elasticity and flexibility of the cable can still be maintained even the it is outdoor used at -40℃. So it will not be stiff and hard to use in winter.

Stronger and Anti-aging

● Tighter and stronger molecular structure. The cable is more anti-aging compared with the normal ones. The sheath is less likely to crack even after long-term sun bursts and oil soaking.

TPU Cable

● Material is more resistant to bending. TPU material can well protect the internal wiring harness to work normally under repeated bending conditions, ensuring a longer service life of the equipment.

Customer Service

●  We can provide customers with professional product advice and purchase options.

● All emails will be responded within 12 hours during working days.

●  All customers will get one-on-one service.

Customized Service

● We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.

● OEM includes color, length, logo, packaging, etc.

● ODM includes product appearance design, function setting, new product development, etc.

● MOQ is depend on different customized requests.

After-sale Service

● The warranty of all our products is one year.

● The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
