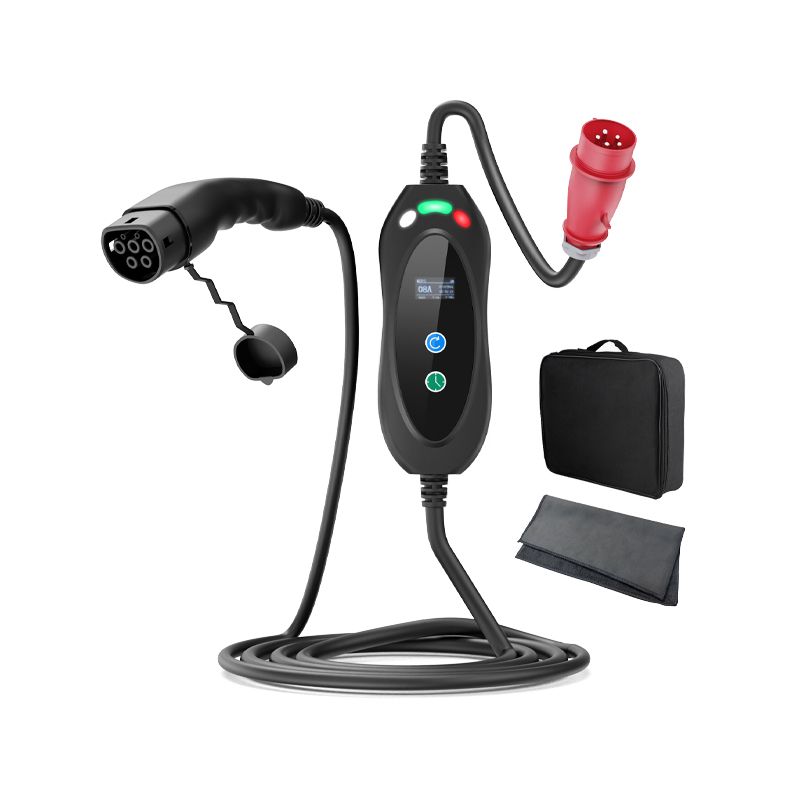

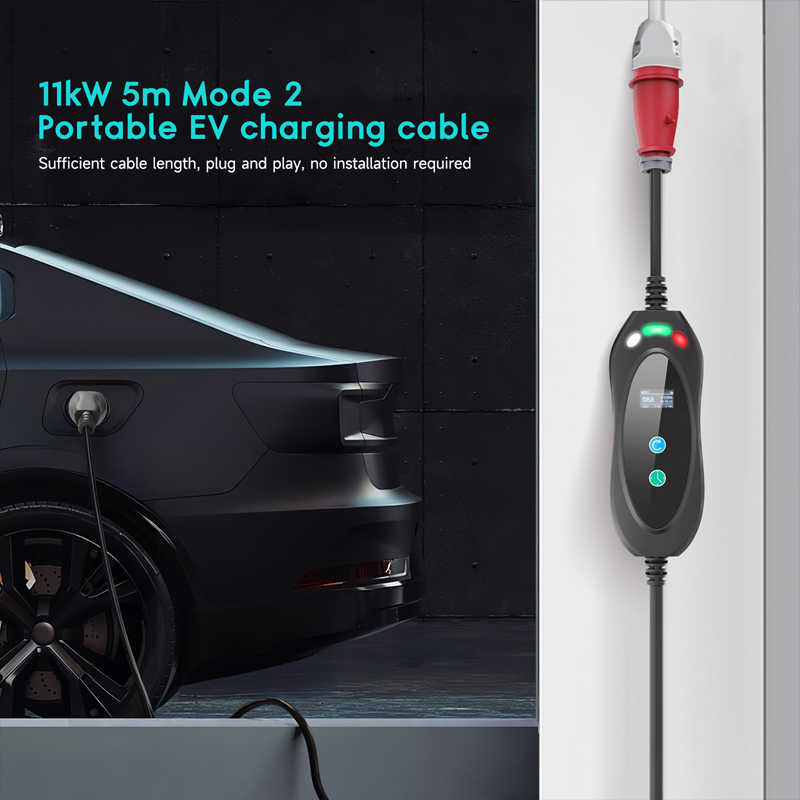

Portable EV Charger IEC 62196-2/IEC61851-1 with 5 metes cable

Compatible with all electric cars and plug in hybrids with type 2 or CCS2 plug

  • Portable EV Charger IEC 62196-2/IEC61851-1 with 5 metes cable
  • Portable EV Charger IEC 62196-2/IEC61851-1 with 5 metes cable
Product Details

Core Advantage

● High compatibility.

● High speed charging.

● Equipped Type A+6ma DC.

● Over-temperature protection.

● Full link temperature control system.

EV Plug

● Integrated design.

● Long working Life.

● Good conductivity.

Box body

● LCD display.

● Higher waterproof performance.

● IP55, rolling-resistance system.

TPE/TPU cable

● Comfortable to touch.

● Durable and preservative.

● EU standard ,Halogon-free.

● High and cold temperature resistance.

Cautions

  • FAST ELECTRIC CAR CHARGER: The Level 2 Portable EV Charger is equipped with a 14-50 plug and uses a 220V power supply, with a maximum current of up to 40A. The portable electric car charger can quickly charge your electric car, so you can spend less time waiting for your car to charge up.

  • PORTABLE ADJUSTABLE ELECTRIC CAR CHARGER: Portable Electric Car Charger charging current can choose 16A/25A/32A/40A four charging currents according to different needs and circuit conditions. Portable EV Charger With portable design, the EV charger is easy to store in the trunk of your vehicle, it's easy to take this charging station with you wherever you go - whether you're traveling to a new city or simply heading out for a weekend road trip.

  • SMART LEVEL 2 EV CHARGER:EV Charging Station schedules your charging time reasonably (1-10 hours delay), you can set the charger to start charging at the time you want by pressing the delay button. Press the delay button to start before bed, and the next morning, you'll have a fully charged car to start your day.

  • SAFETY PROTECTION: The Electric Vehicle Charger is IP55 waterproof ( ev connector IP67waterproof ,control box IP55 waterproof) and has an operating temperature range of -25°C to 50°C.Portable EV Charger Station is sturdy and durable, with Leakage current protection; Impact resistance, Over current protection, Ground protection, Over temp protection, Short Circuits Protection, Lightning Protectoin and other safety protections, EV level 2 charger which can better protect you and you Tram safety.

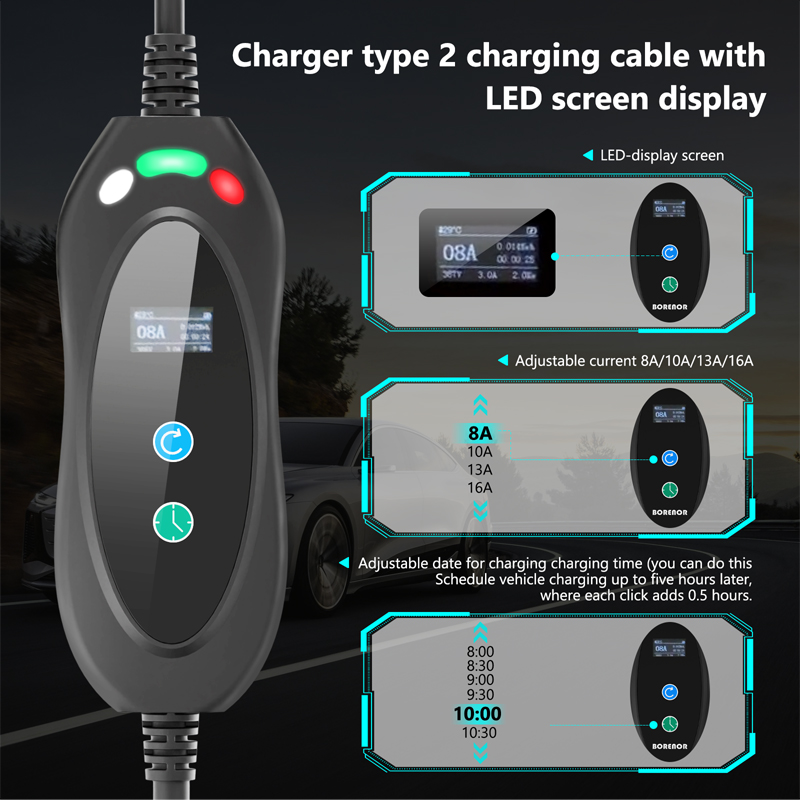

  • LED SCREEN:The LED screen displays real-time charging information, we can check the charging status and see real-time data at a glance, such as the actual charging current and voltage, current temperature and other informative data values.You can easily monitor your charging progress and know exactly when your car will be fully charged.

Electrical Specification

Input Voltage380V AC
Output voltage380V AC
Max. output Current16A
Max. output Power11kW
Input Frequency50Hz
Charging interface typeIEC 62196-2, SAE J1772

Working Environment

Waterproof Protection DegreeIP55
Maximum Altitude<2000m
Environment Temperature-25℃ ~ +50℃
Relative Humidity0-95% non-condensing
Standby Power Consumption<5W
CoolingNatural air cooling

Function and Accessory

Ethernet/WIFI/4G/BluetoothNo
LCDLCD display
RCDType A+6mA DC
LED Indicator lightYes
Intelligent power adjustmenYes
RFIDNo

Customer Service

● We can provide customers with professional product advice and purchase options.

● All emails will be responded within 12 hours during working days.

● All customers will get one-on-one service.

Customized Service

● We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.

● OEM includes color, length, logo, packaging, etc.

● ODM includes product appearance design, function setting, new product development, etc.

● MOQ is depend on different customized requests.

After-sale Service

● The warranty of all our products is one year.

● The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
